SRT SP-MX082 Program Box

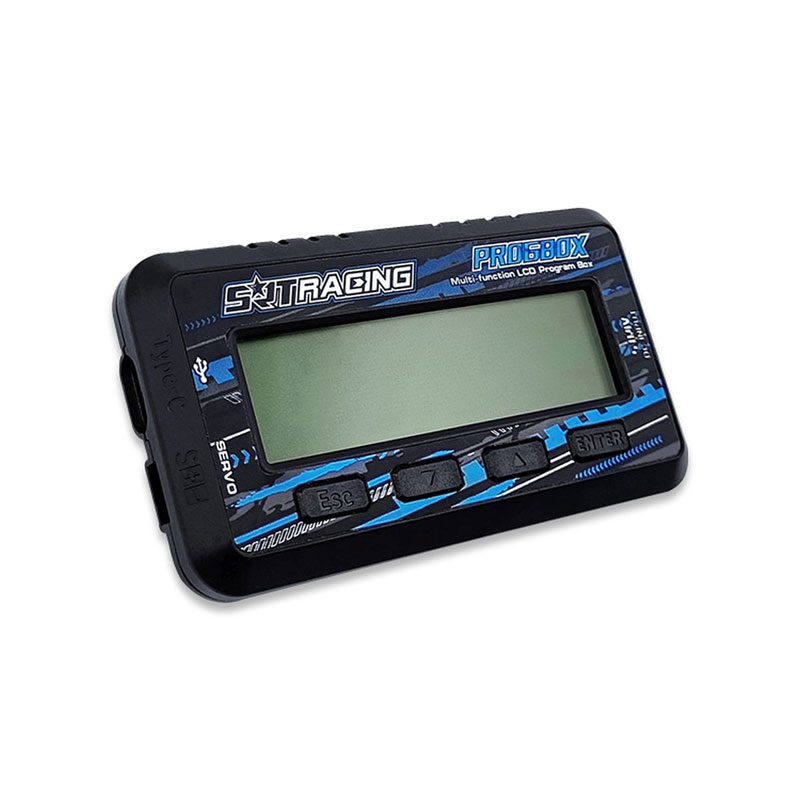

This is the SRT SP-MX082 Program Box

Functions:
1. Servo parameters setting
2. Connect the computer to set the servo
3. Servo testing

Features

• Program box SP-MX082 has built-in high-performance 32-bit microprocessing, small size, simple and convenient operation.
• Connect the servo through the program box for parameter setting, so that the servo can adapt to different track conditions.
• Program box can store 20 sets different servo parameters.
• The program box has the function of central point adjustment, which makes the left and right angles of the chassis more consistent.
• Servo Testing: servo board band and narrow band PWM testing function.
• DEFAULT: one-key restore factory parameter function.
• Apply to a variety of SRT servos with programming marks, such as: BH815S, BH922S, BH927S, CH712S, D1S, W35, W45, T45, T55, T65, T75, BHX6, BHX8, BHX9, Min6

Specifications
Operating Voltage: 5-8.4V DC
Idle Current: <20mA
Operating Temperature: 0-40deg C
Storage Temperature: -10-60deg C
Storage Humidity: 20-75%RH
Weight: 40g
Dimensions: 87.0x47.0x12.0mm
