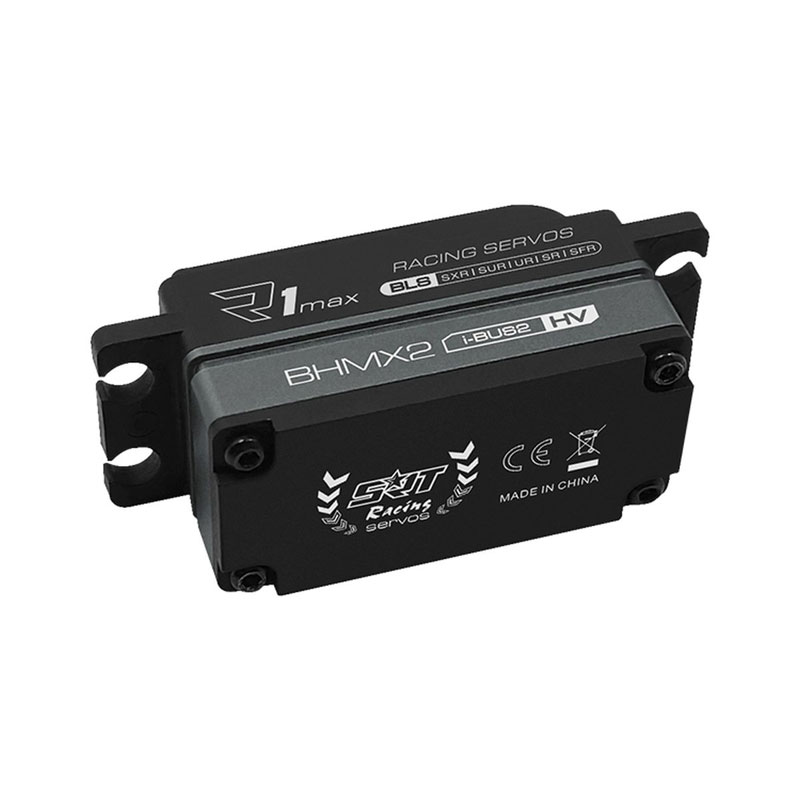

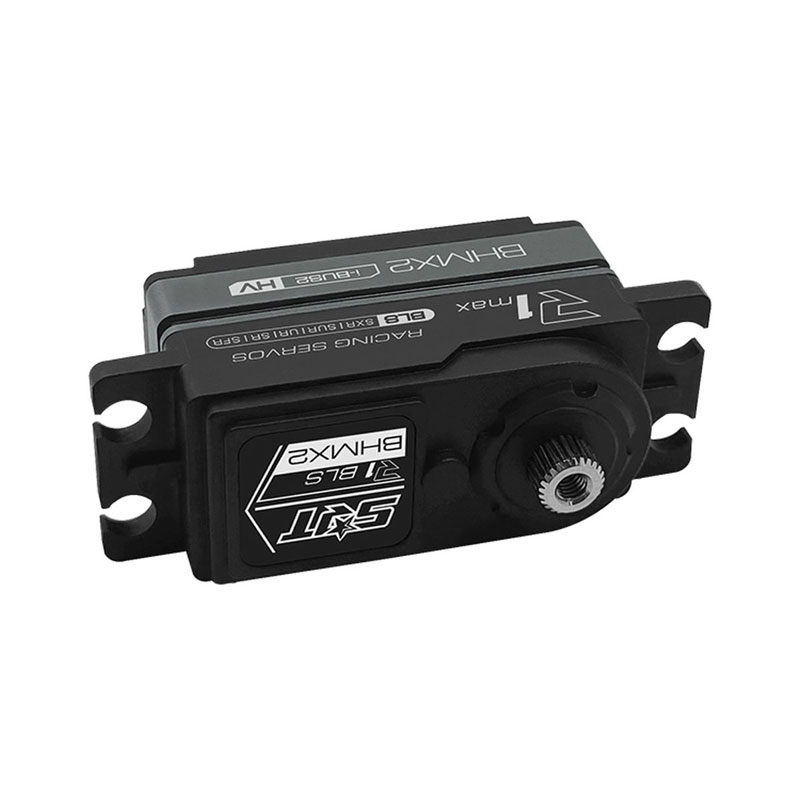

SRT Low Profile HV Brushless Digital Servo, .065sec / 319.4oz @ 8.4V, 180mm Lead

This is the SRT Low Profile HV Brushless Digital Servo, .065sec / 319.4oz @ 8.4V, 180mm Lead

The latest generation of SRT servos provides you with the performance you need for any 1/10th to 1/8th scale vehicle application. This is a low profile standard size servo for High-Voltage applications up to 8.4V.

Featuring SRT innovations like all metal servo mounting tabs to keep them in place through the most extreme conditions, SRT servos will fit most any application.

Features

• Ideal for 1/10 on road applications
• Incredible efficiency and low power consumption
• Aluminum case for good heat dissipation
• Supporting SUR, SFR, SR, SSR, SXR multiple ultra high speed modes. NMB dual main bearings
• 25T output shaft
• 1-Year Limited Warranty

Specifications
Motor Type: Brushless
Gear Type: Metal
Gear Material: Titanium + 7075
Control System: Pulse Width Control
Working Frequency: 1520us / 330hz
Operating Voltage: dc6.0-8.4v
Operating Temperature Range: -10 to + 60 degree
Operating Speed (6.0v): 0.080 sec/60 degrees at no load
Operating Speed (7.4v): 0.073 sec/60 degrees at no load
Operating Speed (8.4v): 0.065 sec/60 degrees at no load
Stall Torque (6.0v): 15.0kg.cm (208.3 oz/in)
Stall Torque (7.4v): 18.0kg.cm (250.0 oz/in)
Stall Torque (8.4v): 23.0kg.cm (319.4 oz/in)
Potentiometer Drive: Direct Drive
Dimensions: 41.0x20.0x23.3 mm /1.61x0.79x0.92 in
Weight: 42.0g (1.48 oz)
Connector Wire Length: jr 180 mm (Specifically designed for nitro car steering)
