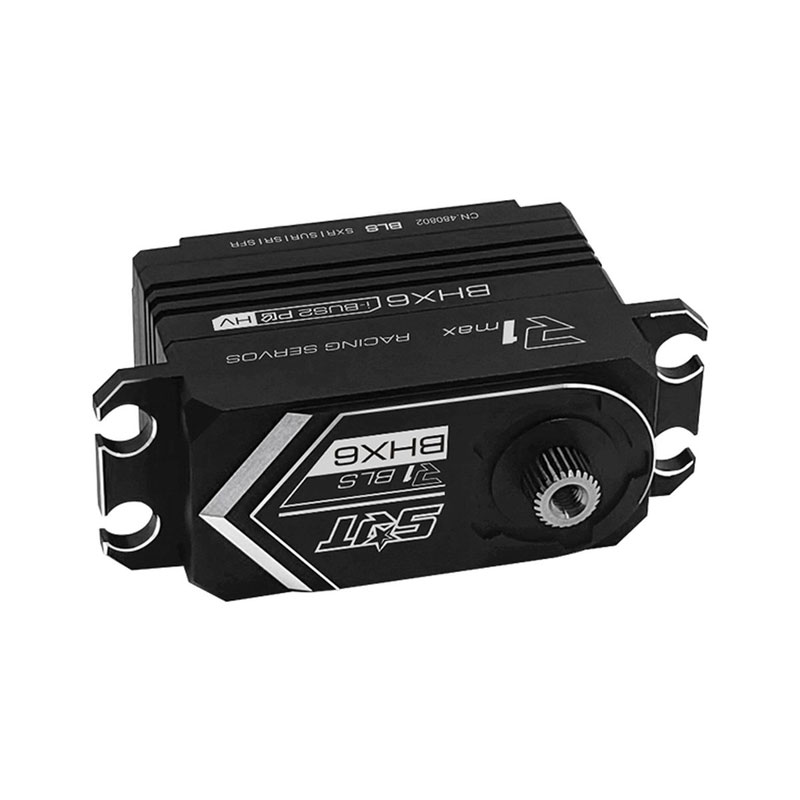

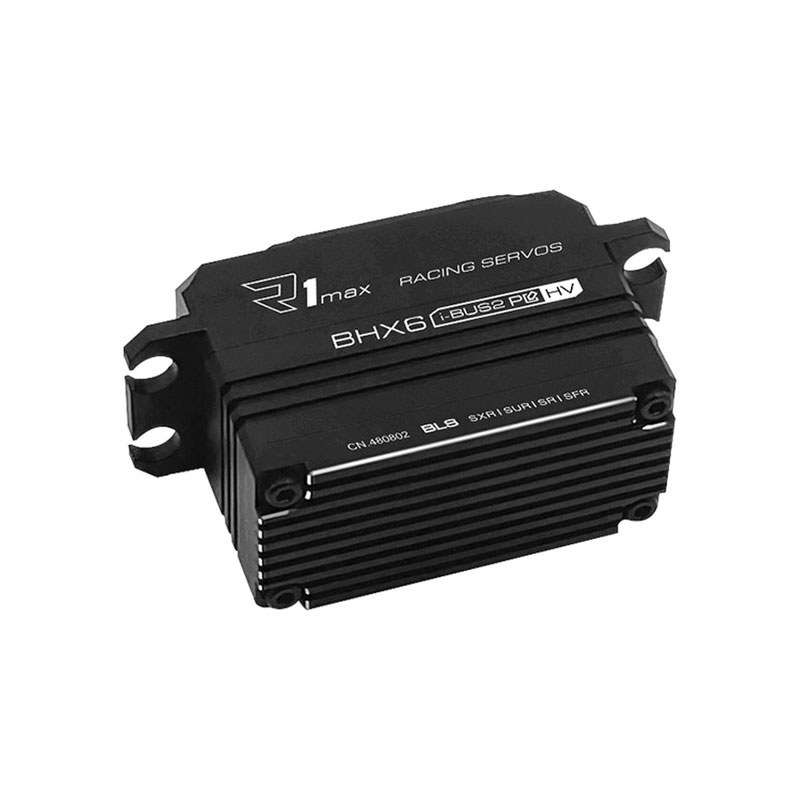

SRT Standard Short HV Brushless Digital Servo, .053sec / 486.1oz @ 8.4V

This is the SRT Standard Short HV Brushless Digital Servo, .053sec / 486.1oz @ 8.4V

The latest generation of SRT servos provides you with the performance you need for any 1/10th to 1/8th scale vehicle application. This is a shorter standard sized servo for High-Voltage applications up to 8.4V.

Featuring SRT innovations like all metal servo mounting tabs to keep them in place through the most extreme conditions, SRT servos will fit most any application.

Features

• Ideal for 1/10 on road and 1/8 off road scale applications
• Superior Holding Torque
• Incredible efficiency and low power consumption
• Standard dimension makes it perfect for vehicles that can benefit from a high-quality servo
• CNC Machined aluminum case for exceptional cooling
• Programmable High torque Brushless servo
• Supporting SXR, SUR, SR, SFR multiple ultra high-speed modes
• 25T output shaft
• 2 usec Dead Band
• 1-Year Limited Warranty

Specifications
Type: Digital
Bearing: Dual
Motor Type: Brushless
Gear Type: Metal
Gear Material: Steel
Control System: Pulse Width Control
Working Frequency: 1520us / 330hz
Operating Voltage: dc6.0-8.4v
Operating Temperature Range: -10 to + 60 degree
Operating Speed (6.0v): 0.08 sec/60 degrees at no load
Operating Speed (7.4v): 0.065 sec/60 degrees at no load
Operating Speed (8.4v): 0.053 sec/60 degrees at no load
Stall Torque (6.0v): 25.0kg.cm (347.2 oz/in)
Stall Torque (7.4v): 30.0kg.cm (416.6 oz/in)
Stall Torque (8.4v): 35.0kg.cm (486.1 oz/in)
Potentiometer Drive: Direct Drive

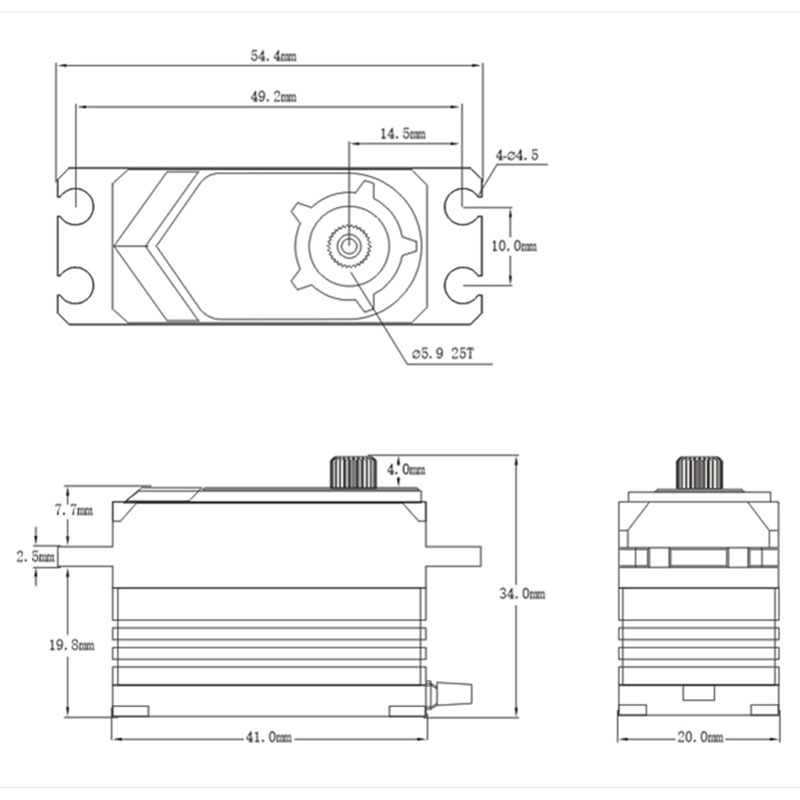

Dimensions: 41.0 x 20.0 x 30.0 mm /1.61 x 0.79 x 1.18 in
Weight: 66.0g (2.33 oz)
Connector Wire Length: jr 300 mm
