Traxxas X-Monster Chassis with Belted Tires RC Monster Truck Chassis Combo w/4S 6700mAh & Dual Charger

This is the Traxxas X-Monster Chassis with TQi 2.4 GHz Radio System, VXL-8s Brushless Power System, Belted Chevron Tires COMBO with TWO 4S 6700mAh batteries and the EZ-Peak Live ID DUAL OUTPUT quick charger.

Requires: MT Body (sold separately).

X-Maxx Toughness. Monster Truck Style.
The new X-Monster Chassis combines the legendary power and durability of X-Maxx with even more strength, larger size, and a new series of replica monster truck bodies. New belted chevron-pattern monster truck tires deliver outstanding traction for jaw-dropping acceleration and 50+ mph speed with the authentic scale looks of a real monster truck. Choose your favorite Ford or Chevy body (sold separately) and unleash 30+ volts of extreme 8s power!

Legacy of Toughness
Traxxas set a new standard for RC monster trucks with the release of the original X-Maxx. Since then, X-Maxx has only grown stronger and more powerful with each generation. The new X-Monster Chassis incorporates the latest and greatest X-Truck upgrades to create the strongest chassis and driveline ever offered.

New Monster Truck Wheels & Terra Groove Tires
Terra Groove chevron-pattern monster truck tires give the X-Monster Chassis a livelier feel with improved grip and greater control. The huge 8.6” tires are made from an ultra-soft compound for incredible traction with internal belting to reduce ballooning. Replica white monster truck wheels feature military-style hubs for an authentic scale appearance.

Choose Your Body (Sold Separately)
Pair the X-Monster Chassis with a replica Ford F-150, Chevrolet C/K, or BIGFOOT No. 8 body (sold separately). Each body features a full-length reinforced body cage for maximum rigidity. Already have a custom-painted X-Maxx body? The X-Monster Chassis also accepts existing X-Maxx clipless bodies!

Features

• Choose from Several Clipless Monster Truck Bodies (sold separately)

  • Quick one-hand installation and removal
  • Pivoting rear latch mechanism
  • Eliminates body posts and clips
  • Reinforced for extra protection
• VXL-8s Waterproof Electronic Speed Control

  • 8S LiPo compatible
  • Built-in cooling fan
  • Machined heat sinks
  • 10-gauge silicone wire
  • Integrated protection circuits
  • LED status lights
• Velineon 1200XL Brushless Motor

  • 4-pole 1275 Kv
  • 5 mm output shaft
  • Aluminum slip-on heat sink
  • Dual motor cooling fans
• 50+ mph with Two 4S LiPo Batteries and Included Optional Pinion Gear
• Traxxas Stability Management (TSM)

  • Helps prevents spinouts and loss of control
  • Adjusts from off to 100% assistance from the transmitter
• TQi 2.4 GHz High Output Radio System

  • Traxxas Link enabled
  • 2.4 GHz 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
  • Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
  • Multi-Function knob
  • Adjustable steering and throttle percentage (dual rates)
  • Adjustable steering and throttle sensitivity
  • BEC Voltage and Motor Temperature Sensor installed
• 8S Driveline

  • Steel pinion and spur gear
  • Full-time shaft-driven 4-wheel drive
  • Heavy-duty steel CV driveshafts
  • Beefed-up steel differential output cups
  • Splined aluminum center driveshaft
  • Machined aluminum stub axles
  • Torque-Biasing Center Drive absorbs shocks and distributes power to all four wheels
  • 24 mm splined wheel hexes
  • Sealed, silicone fluid-filled diffs with large module ring and pinion gears
• Fixed Motor Mounting System

  • Preset gear mesh adjustments
  • No manual adjustments required
  • Motor retention separate from gear mesh
• Heavy-Duty Modular Composite Chassis

  • Interlocking front and rear bulkheads
  • Motor mounts to rear bulkhead to eliminate gear crunching flex
  • Easy to service and access components
  • Driveline is sealed in the chassis to keep out dirt and grit
• Snap-Lock Battery Retention System

  • No body clips or hook and loop straps
  • Battery hold-downs pivot for easy access
  • Adjustable for battery size
  • More secure than conventional retention systems
  • Integrated into chassis top brace for improved battery tray and chassis stiffness
• Bumpers & Skid Plates
  • Front energy absorbing rubber impact cushion
  • Lower front and rear skids for impact and abrasion resistance
  • Integrated nerf bars for side impact resistance
• Steering

  • 2085XL high-output metal-gear steering servo

    • 450 oz-in torque
    • Aluminum cooling fins
  • Fully-supported case mounting
  • Double-shear, bearing supported servo horn
• Suspension

  • Heavy-duty suspension arms with double-shear connections
  • High strength steel suspension pins used throughout
  • Captured outer lower suspension pins with locknuts
  • C-hub and steering block geometry maximizes steering angle
  • Adjustable roll center
  • Steel upper and lower tie bars
  • Full contact sealed bearings used in exposed locations
• Aluminum GTX Shocks

  • Machined aluminum threaded body
  • Extra-large bore and capacity
  • 5.2 mm damper shaft
  • Lower seal cartridge includes integrated wiper seal combination
  • Adjustable upper spring retainer
  • Plastic shock caps with pivot balls
  • Fixed shock locations
  • Lower spring perches bolted on
• Wheels & Tires

  • Dual-profile white monster truck wheels

    • Replica military-style axle hubs
  • Huge 8.6" belted Terra Groove monster truck tires

    • Super-soft rubber compound for exceptional grip
    • Internal belting virtually eliminates ballooning

New Belted Monster Truck Tires
Huge 8.6'' chevron-pattern tires give the X-Monster Chassis its unique handling characteristics. A belted carcass limits ballooning, allowing the tires to be extra soft for better grip. The ultra-soft rubber compound conforms to rough surfaces for excellent traction with deep grooves that dig into loose sand, gravel, and mud. On pavement, the tires slide just enough to reduce rollovers while still providing responsive handling.

HD Arms with Captured Pins
The X-Monster Chassis' heavy-duty suspension arms offer just enough flex to help avoid breaking, even in cold weather. Double-shear connections at all mounting points offer incredible strength. Captured lower hinge pins at the outer joints now feature locknuts to hold them securely in place.

Monster Steering
The X-Monster Chassis rolls on the largest tires ever outfitted to an X-Truck, so a powerful steering servo was an absolute necessity. With 450 oz-in of torque, the 2085XL metal-gear servo has extra power on tap for extreme driving on any surface.

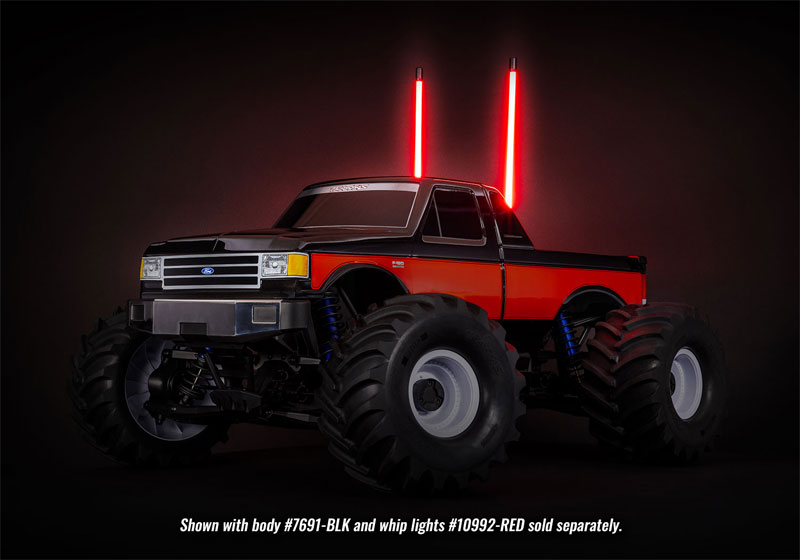

Optional Whip Lights
The X-Monster body cage features bosses to mount the same high-visibility whip lights used on the Funco Pro Scale Replica (TRA10992). These colorful lights rise over 10 inches for improved visibility when storming across the horizon. Flex-Tech™ spring-loaded mounts allow the lights to bend without breaking.

Energy-Absorbing Bumpers
Bright chrome bumpers give the X-Monster Chassis an authentic monster truck appearance while still providing tough impact protection. An energy-absorbing cushion behind the front bumper helps to soften frontal blows and make the X-Monster Chassis even more durable.

Extreme HD Output Yokes
The X-Monster Chassis uses the beefed-up rear differential output yokes designed for the 2WD Funco Pro Scale Replica. Additional steel makes these the strongest output yokes ever fitted to X-Maxx.

*Click to See the Full Line of Parts/Accessories

Specifications
Name: X-Monster Chassis
Type: Monster Truck
Speed: 50+ mph with two 4S LiPo batteries and optional speed gear (sold separately)
Skill Level: 6
Scale: X-Truck
Weight: 19.1 pounds (8.66 kg)
Length: 30.67 inches (779 mm)
Width: 21.3 inches (540 mm)
Front Track: 21.3 inches (540 mm)
Height: 13.99 inches (355 mm)
Motor Name: Velineon 1200XL
Type: 1275 Kv sensorless brushless
Weight: 23.44 ounces (665 g)
Length: 4.32 inches (110 mm)
Diameter: 1.88 inches (48 mm)
Shaft Size: 5 mm
Connector Type: 6.5 mm bullet connectors
ESC Name: Velineon VXL-8s
Type: Brushless
Case Size: 2.23 inches (58 mm) / 2.83 inches (72 mm) / 1.81 inches (46 mm)
Weight: 7.60 ounces (215.5 g)
Motor Connectors: 6.5 mm bullet connectors
Battery Connectors: Traxxas High-Current Connectors
Power Wire: 10 gauge Maxx Cable

Requires
Body: Select your X-Monster body from one of several available options.
(4) AA batteries for the transmitter
