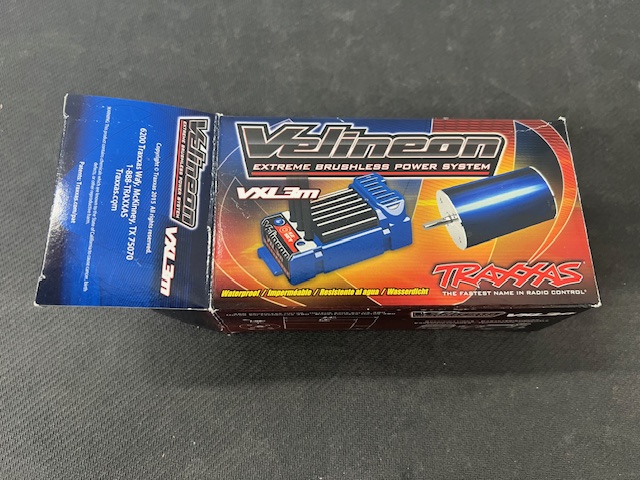

This is the Traxxas Velineon VXL-3m Brushless Power System for use in Traxxas 1/16 Scale vehicles. This will not fit 1/10 scale vehicles. - OPEN BOX/ITEM
*The factory packaging has been opened but the part has not been used. The part will be secured properly for shipping.
Like its larger 1/10 scale counterpart, the 1/16 scale Velineon VXL-3m electronic speed control and 380-size 4000 kV brushless motor are carefully engineered to work seamlessly together for maximum power flow. High-frequency transistors and advanced circuit design delivers incredibly smooth and refined throttle control with Traxxas EZ-Set one-button convenience.
Specifications
VXL3m ESC:
Input Voltage: 6-12 cells NiMH, 2S to 3S LiPo
Motors: Sensorless Brushless
Motor Limit: None
Continuous Current: 52A
Peak Current: 326A
BEC Voltage: 6.0Volts DC
Transistor Type: MOSFET
On-Resistance: 0.0005 ohms
PWM Frequency: 12,000Hz
Weight: 38g (1.34oz)
Motor:
Type: Sensorless Brushless
RPM/Volt: 4000 (8-turn)
Current Ratings: 25A constant/50A burst
Max RPM: 50,000
Weight: 140g (4.94oz)
Length: 48.15mm (1.9")
Diameter: 28mm (1.1")
Shaft Diameter: 2.7mm (0.11")
Replacement Part For
1/16 E-Revo VXL
Accessory Part For
1/16 E-Revo
1/16 Slash 4X4
1/16 Summit
***As with all of our open-box, scratch-and-dent, and used items, we want you to be happy with your purchase. Please contact us with any questions before purchasing. We can send additional photos if needed.
