Traxxas TRX-4 Mercedes Benz G500 4x4 RC Crawler RTR w/3S LiPo COMBO

  • Traxxas TRX-4 Mercedes-Benz G500 RTR Scale & Trail RC Crawler with 3S LiPo Battery & Charger Combo
  • Traxxas TRX-4 Mercedes-Benz G500 RTR RC Crawler on Rocky Trail
  • Traxxas TRX-4 Mercedes-Benz G500 RTR RC Crawler Through Water & Rocks
  • Traxxas TRX-4 Mercedes-Benz G500 RTR RC Crawler Red & Blue Off-Roading
  • Traxxas TRX-4 Mercedes-Benz G500 RTR RC Crawler Going Through Water
  • Traxxas TRX-4 Mercedes-Benz G500 RTR RC Crawler on Rocks
  • Traxxas TRX-4 Mercedes-Benz G500 RTR RC Crawler Chassis/Body with Wheels Off
  • Traxxas TRX-4 Mercedes-Benz G500 RTR RC Crawler Body View

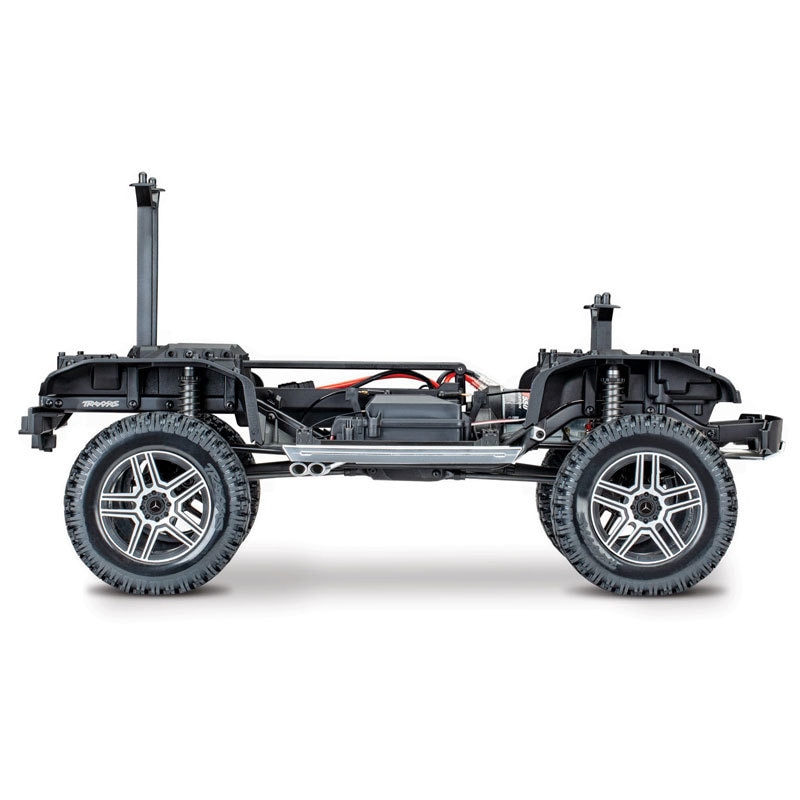

  • Traxxas TRX-4 Mercedes-Benz G500 RTR RC Crawler Chassis Side
  • Traxxas TRX-4 Mercedes-Benz G500 RTR RC Crawler Above Chassis
  • Traxxas TRX-4 Mercedes-Benz G500 RTR RC Crawler Under Chassis
  • Traxxas TRX-4 Mercedes-Benz G500 RTR RC Crawler Wheel Well View
$48990 $565.93
(You save $76.03)
This item earns 490 Reward Points!
Brand:
Model: TRA82096-4-C2

TRX-4 G500 ULTIMATE COMBO PACKAGE INCLUDES
Traxxas TRX-4 Mercedes G500 4x4 Scale Crawler
Traxxas EZ-Peak ID 4-Amp Charger
Traxxas 3S 4000mAh LiPo Battery

This is the Traxxas TRX-4 Mercedes-Benz G500 RTR 4x4 Scale Rock Crawler & Trail Truck COMBO with 3S LiPo Battery and EZ-Peak ID Charger.  Built on the innovative TRX-4 chassis, the G500 is equpped with a TQi 2.4GHz radio system, XL-5 HV speed control, and the powerful Titan 21T 550 motor. Add to this the beautiful scale G500 body, and you're ready to turn heads both on the streets and the trails.

In 2015, Mercedes-Benz released the limited-production G 500 4x4 to stake its claim as the ultimate off-road vehicle. Outfitted with a powerful V8 engine, dynamic 4WD system, and military-grade portal axles, the G 500 4x4 had no equal. Traxxas honors the engineering masterpiece that is the G-Class with this highly-detailed RC replica. Based on the class-leading TRX-4, the Traxxas Mercedes-Benz G 500 4x4 features portal axles, a high/low transmission, and locking differentials for superior all-terrain capability. The highly detailed body with unique wheels and tires makes this truck a fitting tribute to the legendary original.

Take the Path Less Traveled
The Traxxas TRX-4 Scale and Trail Crawler is an all-new Traxxas design that is loaded with innovation that instantly obsoletes the status quo with exciting new features, versatility, and capability. In other words, we built it the Traxxas way, rugged, powerful, and ready for fun!

Underneath the authentic scale look is a machine built for extreme off-road capability that takes you to new places and new adventures. Exclusive portal axles deliver maximum ground clearance that dramatically turns "no way" into "no problem." Whether you are enjoying outdoor trails or getting technical on the rocks, the remote-locking front and rear differentials and high/low range transmission provide unmatched driving versatility.

Traxxas TRX-4 Features

  • Officially Licensed Mercedes-Benz G 500 4X4 Body

    • Scale details: chrome grille, chrome front skid plate, side mirrors, side trim, windshield visor with light buckets, door handles, wipers, and dual side exhaust
    • Clear front headlight lenses, marker lights, hood blinkers, and colored tail lights accept LED light kit
    • Authentic decal sheet
    • Full Nylon composite wheel wells and floor pans
  • Trail-tuned XL-5 HV Waterproof Electronic Speed Control
    • Fully waterproof design
    • Five drive profiles
      • Sport Mode - forward / brake / reverse
      • Race Mode - forward / brake / no reverse
      • Training Mode - 50% forward / 100% brake / 50% reverse (patented)
      • Trail Mode - forward / brake / reverse / with trail-tuned drag brake in neutral
      • Crawl Mode - forward / instant reverse - no neutral with 100% hill holding brake
    • Traxxas EZ-Set one-button setup
    • Large, efficient heat sink
    • Wide voltage latitude 6-7 cell NiMH (7.2-8.4V) and 2-3s LiPo (7.4-11.1V)
    • Two stage low voltage protection (LVD)
  • Motor
    • Powerful Titan 21T reverse rotation motor with internal cooling fan
    • Precision, preset gear mesh adjustments
    • Motor retention separate from gear mesh
  • Portal Axles
    • Increase ground clearance
    • Eliminate torque twist
    • Steel gears
    • Improve axle geometry and reduce strain on driveshafts
  • Rigid Steel Frame
    • 1.5mm thick steel frame rails increase torsional rigidity
    • Innovative design allows four wheelbase positions (300mm, 312mm, 324mm, 336mm)
    • Adjustable rear shock tower positions for SWB and LWB configurations
    • Bumpers adjust fore and aft
    • Rugged rock rails adjust for width
    • Wire routing clips integrated into frame rails
  • Drivetrain
    • Full-time shaft driven 4-wheel drive
    • Tough 6mm stub axles
    • Steel front CV driveshafts
    • Hardened steel rear axle shafts
    • Remote locking steel gear differentials with cable-actuation
    • Steel gear transfer case
  • Innovative Battery Compartment
    • Hinged battery strap allows quick and easy battery access
    • No pins to lose
    • Accommodates different height batteries
    • Accepts full-size long battery packs
    • Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)
    • Secondary front battery tray accepts smaller 1/16 scale batteries (with optional strap)
  • Transmission
    • Two speed high/low range with remote shifting
    • Dual horizontal shafts
    • Twin friction plate slipper clutch
    • Easily removed for servicing
  • Steering
    • Chassis mounted 2075X metal gear digital servo
    • Superior 45-degree steering angle
    • Direct steering (no servo saver)
    • Steering geometry corrected for bump steer
  • Suspension
    • Front - 3 link with panhard
    • Rear - Triangulated 4 link
    • Heavy-duty rod ends with steel hollow balls
    • 5mm diameter steel link rods with 4mm threaded ends
  • Aluminum GTS Shocks
    • Oil-filled coilover GTS shocks exclusive to TRX-4 chassis
    • Silver-anodized aluminum bodies
    • Threaded bodies with collars easily adjust ride height
    • Silky smooth damping for the toughest trails
    • O-ring cap seal and dual X-ring shaft seals
  • Wheels and Tires
    • Replica 2.6" chrome wheels with hub inserts
    • Unique 2.6" all-terrain tires with trail-tuned foam inserts
    • Trail tuned S1 rubber compound
    • 12mm steel hex
  • Transmitter
    • TQi 2.4GHz 4-channel transmitter
    • Traxxas Link enabled
    • Telemetry ready #6533 5-channel micro receiver with failsafe
    • Automatically stores and loads settings for up to 30 Traxxas Link enabled models
    • Exclusive Cruise Control feature for extended trail driving
    • Adjustable steering and throttle sensitivity (exponential)
    • Adjustable steering and throttle endpoints
    • High 13ms frame rate and near-zero latency for responsive control
  • Patented O-ring sealed watertight receiver box keeps the micro receiver dry
  • Sealed Ball Bearings
  • Hex hardware with rust-resistant black oxide coating

All-New Chassis Design
The Traxxas TRX-4 Scale and Trail Crawler is an all-new design that instantly obsoletes the status quo with greatly expanded features, versatility, and capability. Performance and technology combine in a revolutionary new chassis that looks as good as it performs.

Waterproof Electronics
The TRX-4 is fully waterproof, not "splash resistant." There is a big difference. Traxxas' patented innovation gives you the freedom to tackle creeks, snow, and mud without worrying about water in your electronics.

The Power of Portals
Portal axles lift the truck at the wheels for huge center pumpkin ground clearance. In order to achieve the same clearance with straight axles, your tires would have to be over an inch taller than the tires on the TRX-4.

Torque Twist Eliminated
The portal axles use gear reduction at the wheels to virtually eliminate torque twist. The Titan 550 motor's torque translates into straight, powerful, forward motion, rather than wasted energy twisting your rig right off the rocks.

Rigid Steel Frame
A heavy-duty formed-steel ladder frame with molded cross members creates an extremely rigid backbone. You'll feel the difference on trails when navigating technical terrain.

Remote Locking Differentials
Traxxas allows you to lock and unlock both the front and rear differentials remotely from your transmitter. New sleeved micro cables control the differential action for scale appearance, without limiting suspension articulation.

New GTS Aluminum Shocks
All new oil-filled coil-over GTS shocks deliver silky-smooth damping performance and feature threaded aluminum shock bodies for easy ride height adjustments. The convincing scale realism looks great and they perform even better.

High/Low Range Transmission
When the going gets tough, shift into low range for incredible 4WD pulling torque. Shift into high range for blasting down the trail. The TRX-4 Scale and Trail Crawler adapts to any situation or driving style.

3S Power System
The new XL-5 HV electronic speed control brings 3S LiPo capability for stronger, more efficient running. The powerful 21T Titan motor provides torque to tackle the steepest climbs and all-out speed on flat terrain. This efficient system provides up to 2 hours of run time with a Traxxas 3S 5000mAh iD LiPo battery pack!

TQi Radio System with Cruise Control
The Traxxas TQi features our exclusive cruise control for long-distance treks. Set your speed using the transmitter and then use the multi-function knob to fine-tune it faster or slower to match precisely the pace of your caravan of trail explorers.

Accessory Light Kits
Optional light kits (sold separately) illuminate the trail ahead and provide an authentic appearance. A separate regulated power supply ensures powerful lighting with consistent brightness.

TRX-4 Mercedes-Benz G500 Specifications

Length: 20.08 inches (510 mm)
Front Track: 9.78 inches (249 mm)
Rear Track: 9.78 inches (249 mm)
Ground Clearance: 3.14 inches (80 mm)
Weight: 6.85 lb (3.01 kg)
Height (overall): 10.27 inches (261 mm)
Wheelbase: 12.28 inches (312 mm)
Brake Type: Electronic "Hill Hold"
Drive System: Shaft-Driven 4WD
Skill Level: 1
Battery Tray: 158.75 L x 47 W x 23/26 mm H

Requires:

AA batteries for transmitter
