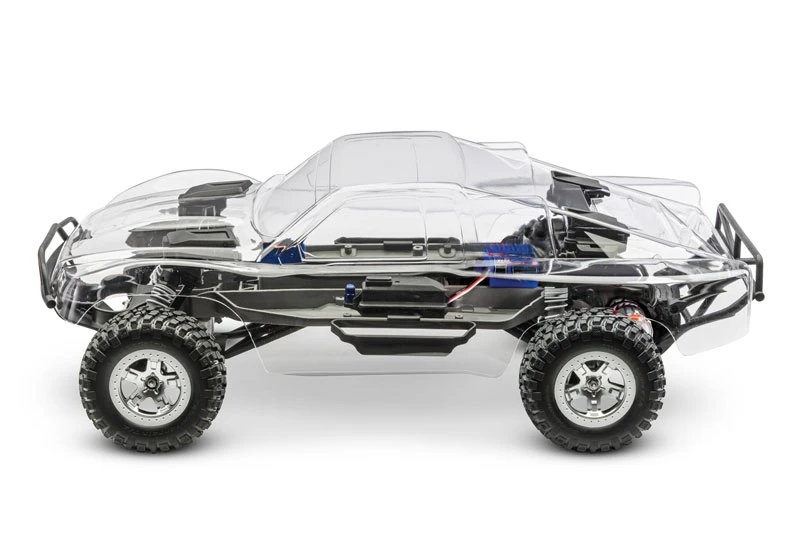

Traxxas Slash 2WD Short Course RC Truck Kit with Electronics

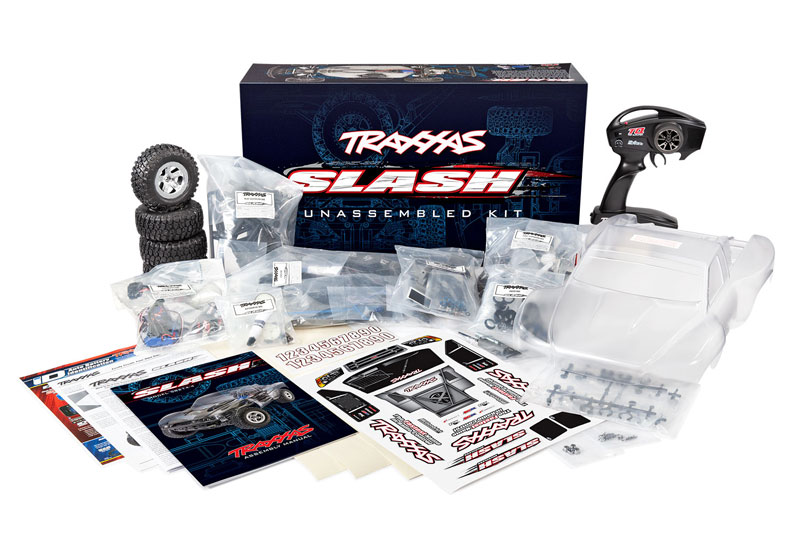

This is the Slash 2WD Short Course RC Truck Assembly Kit with TQ 2.4 GHz Radio System, XL-5 Electronic Speed Control, Factory-installed Extreme HD components, Clipless Clear Body, and Full-Color step-by-step Assembly Manual. This kit requires assembly, painting the body, a battery and charger. The Slash kit with electronics is a great way to learn the mechanics of an R/C truck, or help teach someone new to the hobby.

Slash 2WD Kit: Fun to Build, Exciting to Run!
Build your Slash from the ground up with all the required parts and electronics included in the box. You'll get the convenience of a TQ 2.4 GHz radio system, powerful Titan electric motor, and waterproof XL-5 electronic speed control. All the parts are organized neatly in labeled bags with a fully illustrated color manual to make building rewarding and fun. The Slash assembly kit is perfect for drivers of almost any age or skill level. Build one yourself and experience RC fun the Traxxas way—fast, fun, and easy to use!

Extreme HD Suspension Components
The Slash unassembled kit comes outfitted with factory-installed Extreme Heavy-Duty suspension components for ultimate strength and durability. The rear axle carriers, C-hubs, and steering blocks are beefed up with more material and stronger construction.

Easy-to-Follow Assembly Instructions
The full-color instruction book is easy to follow and fun to use. Each section corresponds to a labeled bag with step-by-step instructions. True-to-scale illustrations and ruler charts make it easy to differentiate between different parts. Helpful assembly tips and clear illustrations take the frustration out of the assembly process.

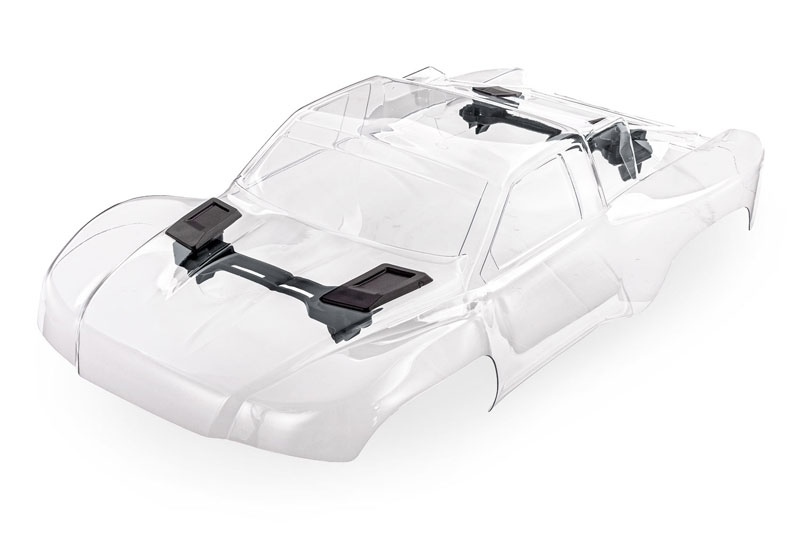

Clipless Body Mounting
Slash’s tough clipless body holds firm no matter how rough the action gets. Heavy-duty latches grip the body tightly, but release in just seconds to access the chassis. Slash’s hidden latching system replaces time-consuming and inconvenient body clips with large reinforced panels to resist pull-through damage.

Features

• Clear Clipless Short Course Body

  • Includes window masking, decals, and custom masking decals
  • Tough front and rear tube-style bumpers
  • Body reinforcements to prevent pull-through damage
  • Holds tight for intense action
  • Quick and easy removal
  • Smooth appearance with no body posts or clips
• Waterproof XL-5 Electronic Speed Control

  • Three drive profiles

    • Sport Mode - forward / brake / reverse
    • Race Mode - forward / brake
    • Training Mode - 50% forward / brake / 50% reverse (patented)
  • Traxxas EZ-Set one-button setup
  • LiPo and NiMH compatible with two-stage low-voltage detection
• Titan 550 Motor

  • Powerful Titan 12T 550 modified motor with internal cooling fan
  • Oversized armature for big torque and increased power handling
  • Virtually maintenance-free operation
  • Molded wire retainer keeps motor wires secure
• Extreme Heavy Duty Parts Installed

  • Strengthened C-hubs, axle carriers, and steering blocks
  • HD suspension arms
  • Extreme heavy duty driveshafts

    • Extra material for improved strength
• TQ 2.4 GHz 2-Channel Radio System

  • Ergonomic transmitter with internal antenna
  • Traxxas 6519 3-channel micro receiver with fail-safe security
  • O-ring sealed watertight receiver box keeps the receiver dry
• Easy Access Battery Compartment

  • Adjustable battery hold down
  • Accepts 6- and 7-cell flat packs and 7-cell hump packs
  • Accepts many 2S LiPo battery configurations
• Transmission and Driveline

  • Velineon-ready Magnum 272 metal-gear transmission
  • Torque-Control slipper clutch system
  • Planetary gear differential with steel ring gear
  • Sealed gearbox protects the transmission with beefed up motor guard
  • External gear cover with easy clutch access
  • Heavy-duty telescoping U-joint driveshafts and yokes
• Tough Fiber-Composite Monocoque Chassis

  • Long 13.2″ wheelbase for increased stability
  • Over 3.5″ ground clearance
• Steering

  • Digital High-torque waterproof Traxxas 2075 steering servo
  • High-performance bellcrank system minimizes bump steer
• Suspension

  • Adjustable steel turnbuckles
  • Captured rod ends won't pop off
• Springs and Shocks

  • Fully adjustable oil-filled Ultra Shocks with X-ring technology
  • Race-tuned progressive rate white powder-coated springs
• Wheels and Tires

  • Pre-glued BFGoodrich Mud Terrain T/A tires with performance foam inserts
  • 2″ outer diameter, 3″ inner diameter dual-profile SCT wheels
• Includes Full-Color Step-By-Step Assembly Manual
• Rubber-Sealed Ball Bearings
• Precision Hex Hardware

Specifications
Type: Short Course Truck
Speed: 30+ mph with 7-cell NiMH battery
Skill Level: 1
Scale: 1/10
Weight: 4.81 pounds (2.18 kg)
Length: 22.8 inches (578 mm)
Width: 11.65 inches (296 mm)
Front Track: 11.65 inches (296 mm)
Rear Track: 11.65 inches (296 mm)
Height: 7.60 inches (193 mm)
Wheelbase: 13.2 inches (335 mm)
Center Ground Clearance: 3.5 inches (89 mm)
Driveline: 2WD
Transmission: Magnum 272
Differential Type: Planetary steel gear
Gear Ratio (Internal): 2.72 (final drive: 9.05)
Gear Pitch: 48 pitch
Steering Servo: 2075 digital high-torque waterproof
Radio System: 2.4 GHz 2-channel radio
Battery Compartment Specs: 165 mm X 49.5 mm X 23 mm, 25 mm
Motor: Titan 12T 550
Type: High-speed brushed motor
Weight: 8.47 ounces (240 g)
Length: 3.07 inches (78 mm) overall length, 2.25 inches (57 mm) can length
Diameter: 1.41 inches (36 mm)
Shaft Size: 3 mm
Connector Type: Bullet
ESC: Waterproof XL-5 ESC with low-voltage detection
Type: Brushed
Case Size: 1.23 inches (31 mm) / 2.18 inches (55 mm) / 1.04 inches (26 mm)
Weight: 2.44 ounces (69 g)
Motor Connectors: Bullet
Battery Connectors: Traxxas High-Current Connector
Power Wire: 14 gauge

*Click to See the Full Line of Parts/Accessories

Requires
(4) AA Batteries for Transmitter
6-7 cells NiMH (7.2 to 8.4 volts) flat battery pack or a 2S LiPo battery
Compatible Charger
Basic Hand Tools - Screwdrivers, Needle Nose Pliers
Metric hex drivers - 1.5 mm, 2.0 mm, 2.5 mm
Polycarbonate Paint
