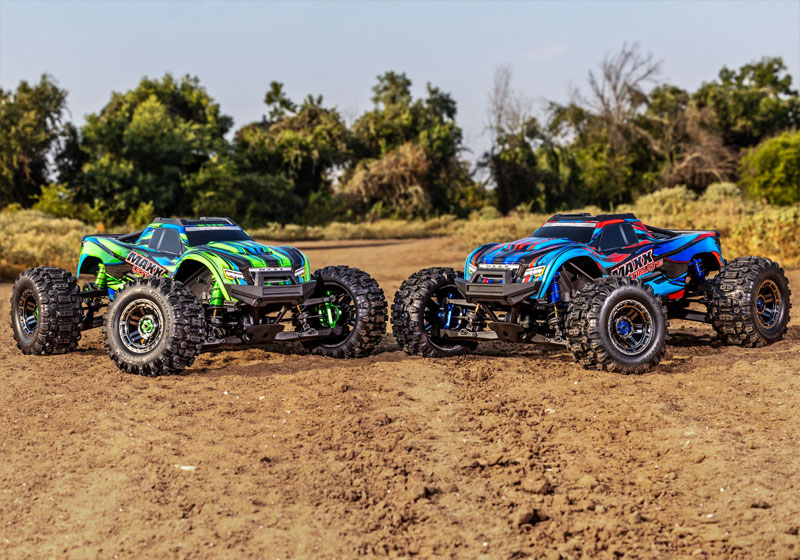

This is the Traxxas Maxx Ultimate 4S 1/10 Brushless Ready-to-Race RC Monster Truck with TQi 2.4 GHz Radio System, VXL-4s Brushless Power System, and ProGraphix Painted Body.
MAXX ULTIMATE
Traxxas Maxx broke the mold by combining X-Truck strength and durability into a 1/10 scale chassis. Maxx Ultimate steps up to elite status with unique graphics, a full complement of premium aluminum upgrades, steel CV driveshafts, and Traxxas’ most powerful steering servo. Discover Maxx Ultimate, the most extreme Maxx-scale monster truck ever to wear the Traxxas name.
Ultimate Durability
Maxx Ultimate receives substantial upgrades in key areas of performance: suspension, chassis, and driveline. Tough 6061-T6 aluminum chassis and suspension parts deliver bombproof strength with show-stopping looks. Steel CV driveshafts and Mod-1 steel gears offer maximum torque handling and durability.
Included Wireless Module
A Traxxas Link Wireless Module comes pre-installed in Maxx Ultimate’s TQi transmitter to take full advantage of the on-board telemetry. The free Traxxas Link app allows you to make micro-adjustments to the transmitter and view real-time telemetry data like speed, RPM, and battery voltage on your mobile device.
Sledgehammer Tires
Huge 5.6” Sledgehammer tires feature an aggressive open-block tread design that clears away mud and debris for unrivaled traction. New black chrome wheels give Maxx a menacing look to match its unrivaled performance. The 2.8” wheels utilize a splined 17 mm hex mount for a stronger connection to the aluminum axles.
Maximum Steering Authority
With a staggering 650 ounce-inches of torque and full steel gears, the High Torque Maxx Servo gives Maxx Ultimate complete steering authority, even with its huge Sledgehammer tires. The case features an anodized aluminum center section with cooling fins and ball bearings for increased precision.
Features
Integrated Wheelie Bar
Maxx Ultimate's wheelie bar helps prevent backflips under full-throttle acceleration and flexes to absorb impacts on less-than-perfect landings. The aluminum wheelie bar wheels add brilliant eye-catching style to the already outrageous Maxx Ultimate. Outfitted with aluminum axles and sealed ball-bearings, the wheels feature durable soft-compound tires to help direct Maxx's horsepower.
Aluminum Hub Carriers
6061-T6 aluminum stub axle hub carriers add both strength and beauty to Maxx Ultimate without compromising its carefully tuned suspension geometry.
Splined Aluminum Wheel Hubs
Aluminum 17 mm wheel hubs combine high-profile looks with superior strength. The splined design locks tightly into the Maxx wheels for precise alignment and unsurpassed grip. Matching aluminum wheel nuts stay snug on the wheel no matter how intense the action gets.
Aluminum Caster and Steering Blocks
Maxx Ultimate's caster and steering blocks combine the brute strength of 6061-T6 aluminum with carefully engineered steering and suspension geometry. The brilliant, anodized finish adds high-tech style with laser-etched logos to show off your genuine Traxxas performance parts.
GT-Maxx Aluminum Shocks
Maxx Ultimate adds ultra-smooth TiN-coated shafts, color-matched aluminum shock caps, and threaded adjustment rings to its aluminum GT-Maxx shocks. These large-bore shocks provide ultra-plush damping over rough terrain with double X-ring seals to keep out dirt. The machined aluminum bodies are threaded to adjust ride height with captured lower spring retainers that won't pop off, even on the harshest landings.
Steel CV Driveshafts
Steel constant-velocity driveshafts offer the ultimate in torque handling and efficient power transfer for Maxx Ultimate's massive 540XL motor. Heavy-duty steel drive cups allow full articulation and hold the press-fit dogbones securely in channels.
Shock-Absorbing Cush Drive
Traxxas' innovative Cush Drive; uses a special elastomer damper to absorb driveline shocks from the upgraded steel spur gear for superior reliability. There is nothing to slip or adjust, just instant acceleration and precise throttle control.
Aluminum Transmission Cover
The aluminum transmission cover is color-matched to the truck with a laser-etched logo for extra style. Milled from 6061-T6 aluminum, the cover locks onto the chassis tightly to keep the Cush Drive in perfect alignment.
Torque-Biasing Center Drive
The Torque-Biasing Center Drive absorbs shocks to improve driveline durability and distributes power to all four wheels for mind-bending four-wheel drive acceleration. Unique to Maxx Ultimate, an aluminum housing adds structural rigidity and helps dissipate heat.
Aluminum Motor Cradle
Maxx Ultimate is built for all-day action with an aluminum motor cradle to support the 540XL motor and eliminate gear-crunching flex. The motor cradle is machined from tough 6061-T6 aluminum for unbeatable toughness with a brilliant anodized finish.
Ultra High-Torque Metal Gear Servo
Maxx Ultimate features Traxxas most powerful servo to turn its massive Sledgehammer tires with authority. With 650 oz-in of torque on tap and large metal gears, the 2085RL steering servo has endless power on tap for extreme driving on any surface. An aluminum double-shear servo horn eliminates flex for fast, responsive steering at high speeds.
Precision Steering
Machined from tough 6061-T6 aluminum, Maxx Ultimate's ultra-rigid bellcrank assembly drastically enhances steering precision and strength. Tight tolerances and a servo saver bushing allow the bellcranks to pivot smoothly on sealed ball bearings with a heavy-duty servo saver spring for added protection.
TUBES Toe Links
Adjustable TUBES toe links make it easy to dial-in the perfect settings for greater precision and control. TUBES are lighter than steel and stronger than titanium with a unique hollow tube design which maximizes rigidity while reducing weight. Made from ultra-high-grade 7075-T6 aluminum, TUBES feature a brilliant, anodized finish for extra style.
*Click to See the Full Line of Parts/Accessories
Specifications
Model Name: Maxx Ultimate
Type: Monster Truck
Top Speed: 60+ mph with 4s LiPo battery and optional gearing
Model Skill Level: 4
Scale: 1/10
Weight: 10.20 pounds (4.63 kg)
Length: 22.50 inches (572 mm)
Width: 15.95 inches (405 mm)
Track: 15.95 inches (405 mm)
Height: 9.12 inches (232 mm)
Wheelbase: 13.85 inches (352 mm)
Center Ground Clearance: 2.6 inches (67 mm)
Drivetrain: Shaft-driven 4WD
Transmission: Single speed
Differential Type: Sealed, hardened steel bevel, limited slip
Gear Ratio (Internal): 12.37:1
Gear Pitch: 1.0 metric pitch
Servo: 2085RL metal gear ultra-high-torque (650 oz-in)
Radio System: TQi 2.4 GHz 2-channel transmitter with wireless module
Battery Compartment Specs: 186 mm X 48 mm X 43 mm
Motor Name: Velineon 540XL
Type: 2400 Kv sensorless brushless
Weight: 317 g (11.18 oz)
Length: 3.58 inches (91 mm)
Diameter: 1.41 inches (36 mm)
Shaft Size: 5 mm
Connector Type: 6.5 mm bullet connectors
ESC Name: Velineon VXL-4s
Type: Brushless
Case Size: 72 mm L x 59 mm W x 49 mm H
Weight: 7.09 ounces (201 grams)
Motor Connectors: 6.5 mm bullet connectors
Battery Connectors: Traxxas High-Current Connectors
Requires
(4) AA Batteries for the Transmitter
4S or 3S LiPo Battery - Traxxas recommends a 4-cell 14.8 volt Power Cell LiPo battery for maximum performance. A 3-cell 11.1 V LiPo battery will operate the vehicle with reduced performance. NiMH batteries are not supported
LiPo Balance Charger with iD - Traxxas TRA2981 Traxxas EZ-Peak Plus or Traxxas TRA2971 EZ-Peak Live Recommended
