This is the Traxxas 4-Tec 2.0 1/10 AWD Brushless, Fully Assembled, Ready-to-Race Chassis with Velineon 3s Brushless Power System, Waterproof Electronics and TQi Sport 2.4 GHz Radio System with TSM.
Build the Ultimate Ride with 4-Tec 2.0 Brushless

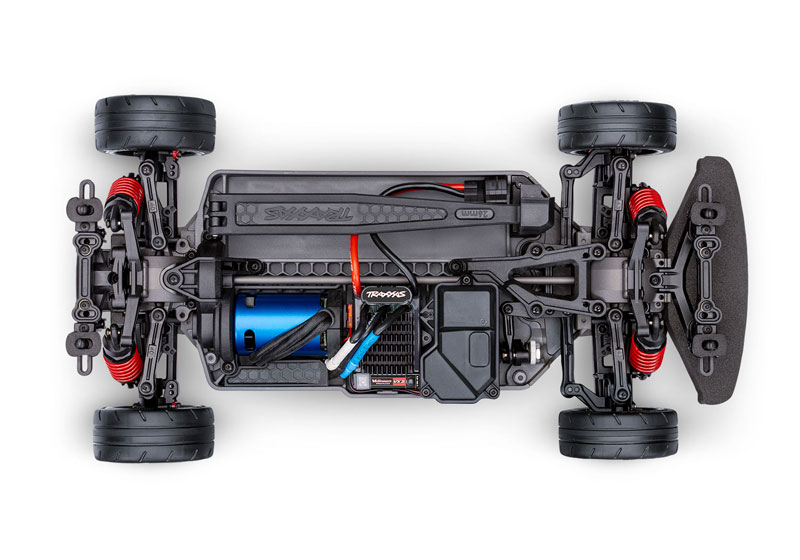

The 4-Tec 2.0 Brushless chassis provides the ultimate high speed driving experience with a low-CG chassis for a crisp, responsive feel. The Velineon 3s brushless power system puts out massive power for four-wheel, tire-spinning acceleration and incredible 50+ mph top speed, and a finely tuned suspension keeps the wheels glued to the pavement. 4-Tec’s adjustable wheelbase and body mounts accommodate almost any 200 mm body, allowing nearly infinite custom body options.

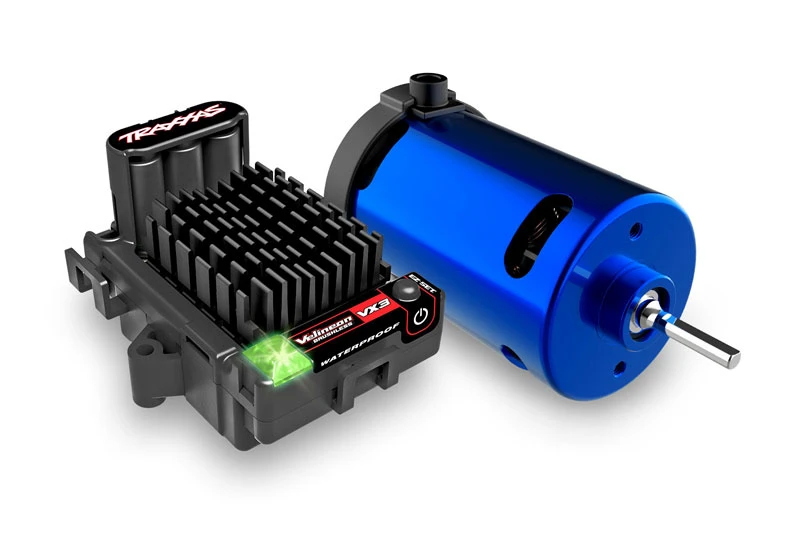

3s Brushless Horsepower
4-Tec’s new Velineon 3s power system is a brushless powerhouse that transforms 11.1 volts of LiPo power into brutal acceleration and 50+ mph speed, out of the box with no gearing changes required. The VX3 speed control is feature-packed and simple to use with Traxxas EZ-Set one-button programming. The powerful V3300 motor is a model of efficiency with internal fan cooling for long run times.
Metal-Gear Servo
4-Tec needs a fast and powerful steering servo to match the quick reflexes and agile handling from its high-performance chassis. 4-Tec receives a new metal-gear servo for superior strength and durability. An integrated servo saver enhances steering precision and protects the servo from impacts.
TQi Sport Transmitter
The TQi Sport transmitter packs the range and performance of the TQi into a compact design for maximum comfort and portability. The ergonomic grip features a removable adapter to accommodate smaller hands and simple one-button programming for ease-of-use. A class-leading high-output 2.4 GHz signal delivers the outstanding range and glitch-free performance required by 4-Tec's blistering speed.

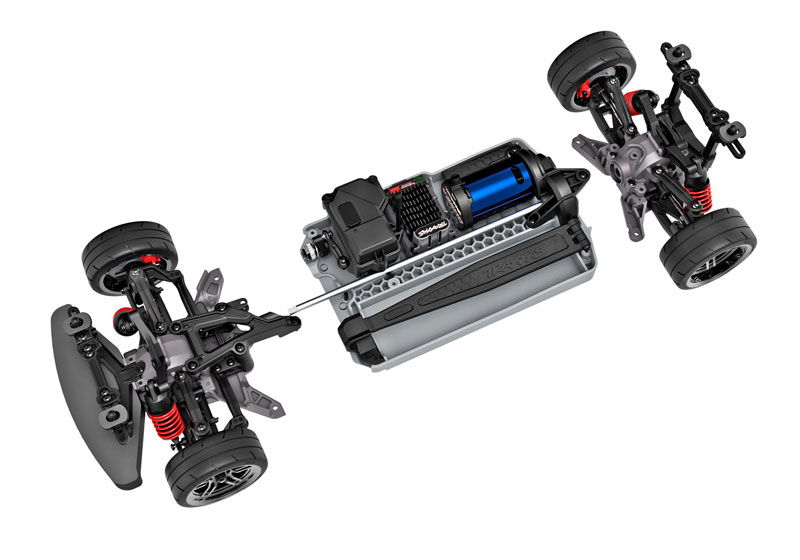

All-Wheel Drive
A highly efficient shaft-driven all-wheel drive system sends power directly to the steel driveshaft for instantaneous throttle response. Sealed front and rear differentials transfer the brushless motor’s massive torque to the wheels through one-piece steel driveshafts. The driveshafts fit inside extended drive cups for maximum articulation and durability.
Features

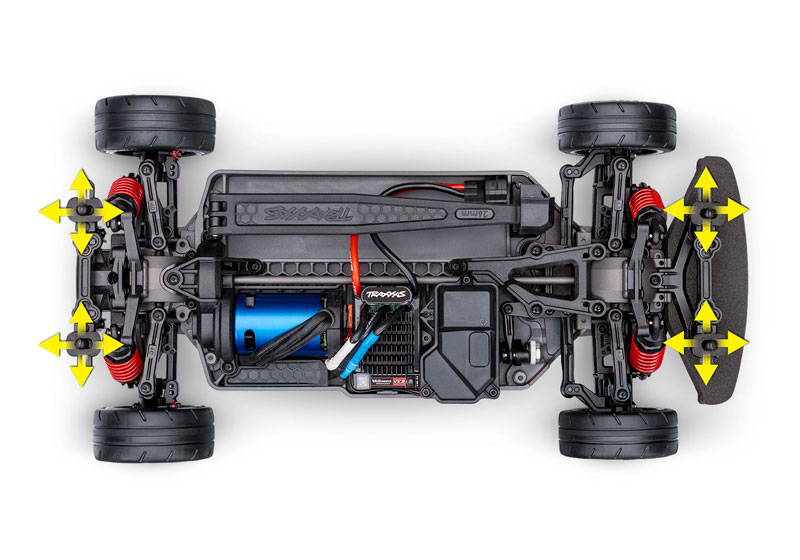

Adjustable Wheelbase
Lengthen or shorten the wheelbase for the perfect body fit. With slight modification, rear suspension arms can be moved 3 mm in either direction.
Adjustable Body Mounts
4-Tec 2.0's adjustable body mounts allow easy installation of popular 200 mm bodies. Body posts may be shifted forward and backward and side to side to accommodate most pre-drilled mounting holes.
Molded Wire Retainer
A simple wire clip would look out of place on this high-tech chassis. Traxxas engineers designed a sleek molded wire retainer to keep motor wires secured safely out of the way.
Fixed Gear Mesh
4-Tec 2.0 makes it easy to set gear mesh precisely thanks to the innovative fixed gear positioning system. Use the convenient chart included in the user manual to select the proper locations for the motor mounting plate based on the selected spur and pinion gears.

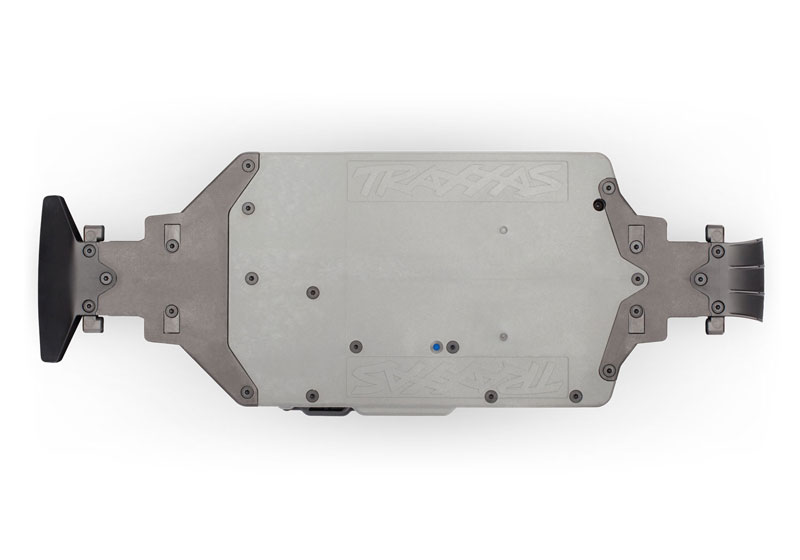

Smooth Undertray
A completely smooth undertray cuts through the air with reduced aerodynamic drag. The smooth chassis resists snags on uneven pavement and expansion joints. The angled front bumper keeps the chassis' stance low, while still allowing it to pass over bumps and up driveways with ease.

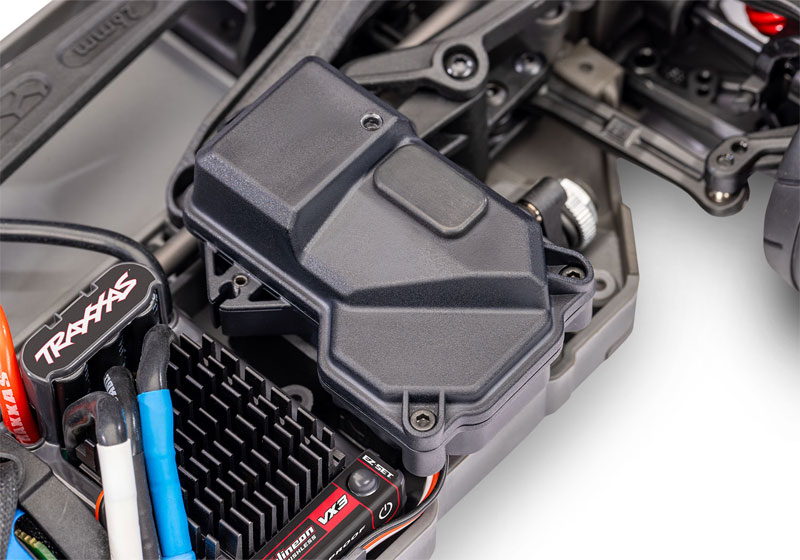

Waterproof Receiver Box
Real world driving requires dealing with the elements. 4-Tec 2.0 comes fully protected with a patented waterproof receiver box. The innovative receiver box keeps the micro receiver dry, even in the worst weather.
Metal Gear Servo
4-Tec 2.0 features a new servo with upgraded durability on an all-metal gear train. The servo delivers quick, precise control with the security and convenience of fully waterproof construction.
Integrated Servo Saver
Conventional servo savers earned a reputation for sloppy steering in on-road cars. The 4-Tec 2.0 incorporates the servo saver into the horn for precise and responsive handling in all situations. An integrated collar allows the spring tension to be adjusted for personalized settings or track conditions.
*Click to See the Full Line of Parts/Accessories
Specifications
Name: 4-Tec 2.0 Brushless Chassis
Type: On-Road Car
Top Speed: 50+ mph
Skill Level: 1
Scale: 1/10
Length: 14.94 inches (379 mm)
Width: 7.9 inches (200 mm)
Height: 2.43 inches (62 mm)
Weight: 2.83 lbs (1.28 kg)
Front Track: 7.7 inches (196 mm)
Rear Track: 7.9 inches (200 mm)
Wheelbase: 10.1 inches (256 mm)
Ground Clearance: 0.3 inches (9 mm)
Driveline: Shaft-driven 4WD
Transmission: Single speed direct drive
Differential Type: Sealed, hardened steel bevel, limited slip
Gear Pitch: 48
Steering Servo: 2057 waterproof metal gear
Radio System: TQi Sport 2.4 GHz 2-channel transmitter

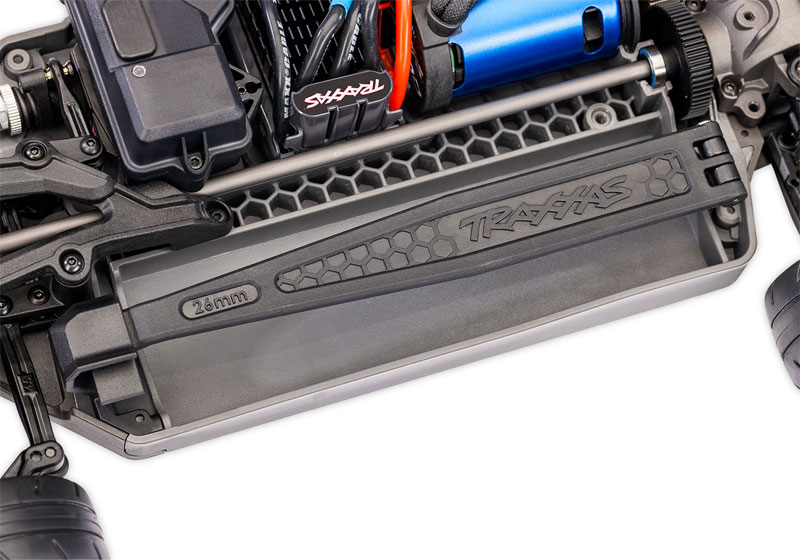

Battery Compartment Specs: 158 mm X 46 mm X 23 mm or 26 mm
Motor: Velineon V3300 (patent pending)
Motor Type: Sensorless brushless
Weight: 7.48 ounces (212 g)
Length: 3.15 inches (80 mm)
Diameter: 1.53 inches (39 mm)
Shaft Size: 3 mm
Connector Type: 3.5 mm Bullet
ESC: VX3 Electronic Speed Control
ESC Type: Brushless
Voltage Range: 2-cell or 3-cell LiPo (NiMH not supported)
Case Size: 2.40″ (61 mm) x 2.09″ (53 mm) x 1.69″ (43 mm)
Weight: 4.20 ounces (119 g)
BEC Voltage: 6.0 volts
Motor Connectors: 3.5 mm bullet
Battery Connectors: Traxxas High-Current Connector
Requires
Body (Standard 200 mm body)
(4) AA Batteries for Transmitter
2S-3S LiPo battery (NiMH not supported)
