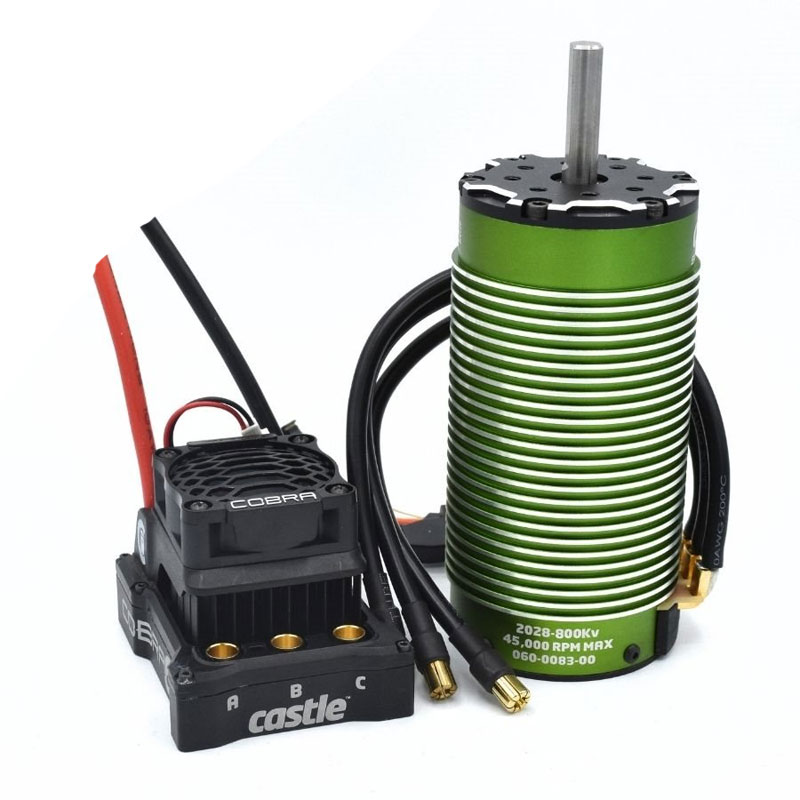

This is the Castle Creations Cobra 6, 33.6V, 8A Peak BEC ESC w/ 2028-800KV Sensored Motor
COBRA 6 Racer Tested - Basher Approved
The COBRA 6, 33.6V ESC W/2028-800KV SENSORED COMBO is ready to take on any R/C vehicle weighing up to 25lbs and running up to 8S LiPo. Designed for heavy, high-performance rigs, you'll experience controllable low-end ranges, without sacrificing power, punch, or speed.
Based around our popular Monster X 8s ESC, this is a direct upgrade and replacement for the next generation of bashing. Taking the core features from its predecessor, the Cobra packs in new features thanks to its powerful 32-bit processor.
New Features
- 32-Bit Processing power for smoother motor control and improved response time.
- Enhanced Data Logging includes:
- Double the maximum sample frequency of older generations.
- 8x increased logging time of older generations.
- Data point for ESC electrical motor timing.
- Data point for acceleration via onboard accelerometer.
- Looping feature prevents interruptions in data log recording.
- Ability to download specific sessions.
- Additional tuning features include:
- Improved braking adjustability
- Separate brake and reverse curves
- Highly adjustable internal BEC. (5.0V - 8.0V adjustable in 0.1V increments)
- Access to tuning options and firmware updates for free with Castle Link V4 USB programmer included with purchase. Now with USB-C connector! (Requires Windows 10 or higher)
- Optional smartphone-based programming with the B-LINK Bluetooth Interface (sold separately) and the Castle Link 2 App on Google Play or Apple App Store.
- Mounting holes located in bottom of aluminum case for installation into vehicle. Download mounting template.
Key Features
- Input Voltage Range 2S-8S LiPo
- Sensorless, Sensored and SmartSense Running Modes
- Powerful Integrated 8A Peak Adjustable BEC (5.25V-8.0V)
- CRYO-DRIVE Technology minimizes the amount of time the ESC’s electrical components spend generating heat, resulting in improved thermal performance during partial throttle operation where the majority of driving occurs
- ESC is housed in a rugged CNC aluminum case and potted in waterproof epoxy to protect the electronics and promote efficient heat transfer
- Premium forged heatsink with elliptical fins for superior air flow and increased heat dissipation
- Oversized factory equipped thermally controlled 40MM cooling fan
- Waterproof design for all weather conditions
- Enhanced Data logging capability to capture and record performance data from your vehicle
- Auxiliary wire functionality for "on-the-fly" adjustments using your transmitter
- Audible alerts for easy diagnosis of common issues such as motor-over-temperature and low-voltage cutoff
- Convenient transmitter programming for six common adjustable settings including cutoff voltage and drag brake
- Easily tune and update ESC with USB and Bluetooth programming options
- Castle Link USB programming (Castle Link V4 included!)
- Optional smartphone-based programming with the B-LINK 2 Bluetooth Interface (sold separately) and Castle Link 2 app available on Google Play or Apple App Store
- Proudly designed and manufactured in Olathe, KS USA and backed by Castle Creations' 1-year warranty
Motor Features
- 4-POLE 12-SLOT sensored design that boasts exceptional efficiency and produces less heat
- Proprietary stator winding produces low internal resistance for a cooler running motor
- Dual sensor ports to ensure optimal installation in your large-scale vehicle
- Oversized NMB bearings and vibration dampening system ensure the longest possible bearing life
- High-strength, high-temperature grade neodymium sintered magnets combined with high-strength Kevlar wrap ensures the integrity of the rotor is not compromised during harsh running conditions and high RPMs
COBRA 6 Combo Includes
COBRA 6 ESC
4-POLE Sensored 2028-800KV Motor
300mm Direct Connect Sensor Wire
Cobra Decals
ESC Quick Start Guide
Motor Quick Start Guide
Specifications
Waterproof : Yes
Telemetry Capable : No
Data Logging : Yes
Auxiliary Wire : Yes
Minimum Input Voltage : 2S
Maximum Input Voltage : 8S
Sensored Capable : Yes
Recon G6 Certified ESC : No
ROAR Certified ESC : No
CRYO-DRIVE : Yes
B-Link Compatible : Yes
